50G

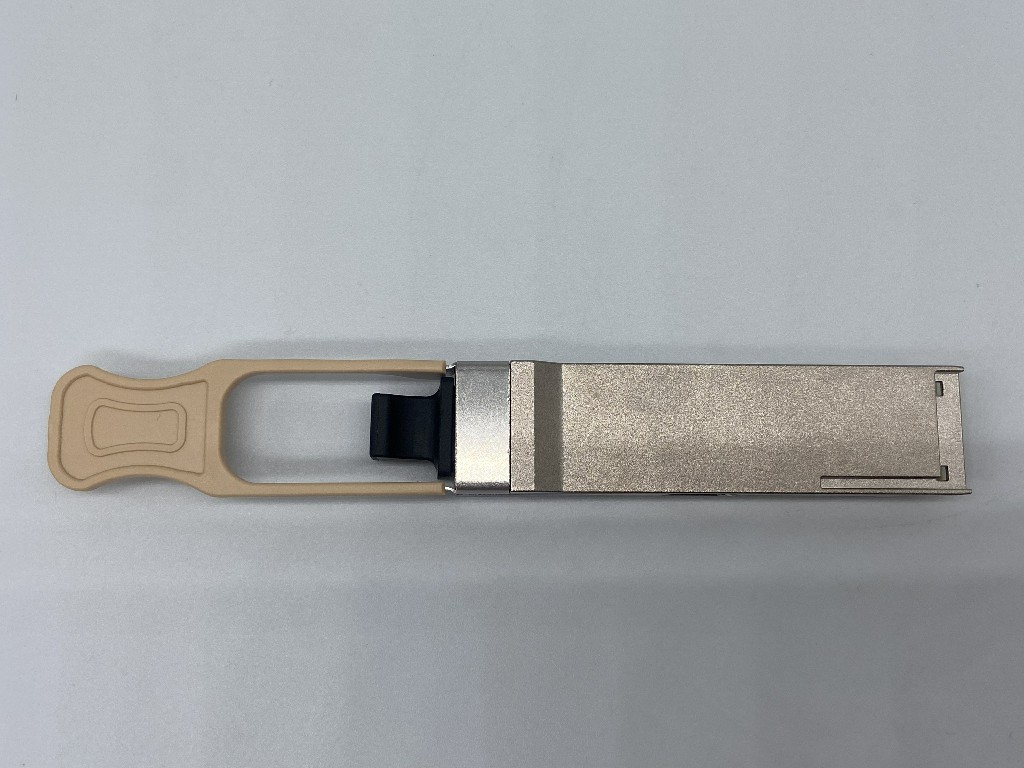

The MQ Optics QSFP28 series optical transceiver include LR, ER, LR BI-DI and so on. This series of products adopt PAM4 modulation technology, with a single channel rate up to 53.125Gb/s. It has the characteristics of low power consumption, small size and high reliability, and is mainly used for telecommunication network transmission and 5G medium transmission.
Inquiry
P/NDescriptionData RateReachTxRxOutput PowerSensitivity
MQ-QSFP28-LRQSFP28 LR50Gb/s10Km1310nm DMLPIN-4.5~+4.2dBm≦-8.4dBm
MQ-QSFP28-ERQSFP28 ER50Gb/s40Km1310nm EMLAPD+0.4~+6.6dBm≦-15.1dBm
MQ-QSFP28-LR-BD73QSFP28 LR Bi-Di50Gb/s10Km1270nm DMLPIN-4.5`+4.2dBm≦-8.4dBm
MQ-QSFP28-LR-BD37QSFP28 LR Bi-Di50Gb/s10Km1330nm DMLPIN-4.5~+4.2dBm≦-8.4dBm
