400G-MQ OPtics Co.,Ltd.

400G

MQ Optics has a complete portfolio of 400G QSFP-DD & OSFP optical transceivers varying from 8x50G to 4X100G architectures. They are compliant with the IEEE 802.3bs, QSFP-DD and OSFP MSA, which are used for the applications for 400G Ethernet, Data Centers and Cloud Computing Networks.

Inquiry

Detail

P/N	Product Description	Data Rate (Gbit/s)	Reach	TX	RX	Power Consumption	Temperature (deg C)	Datasheet

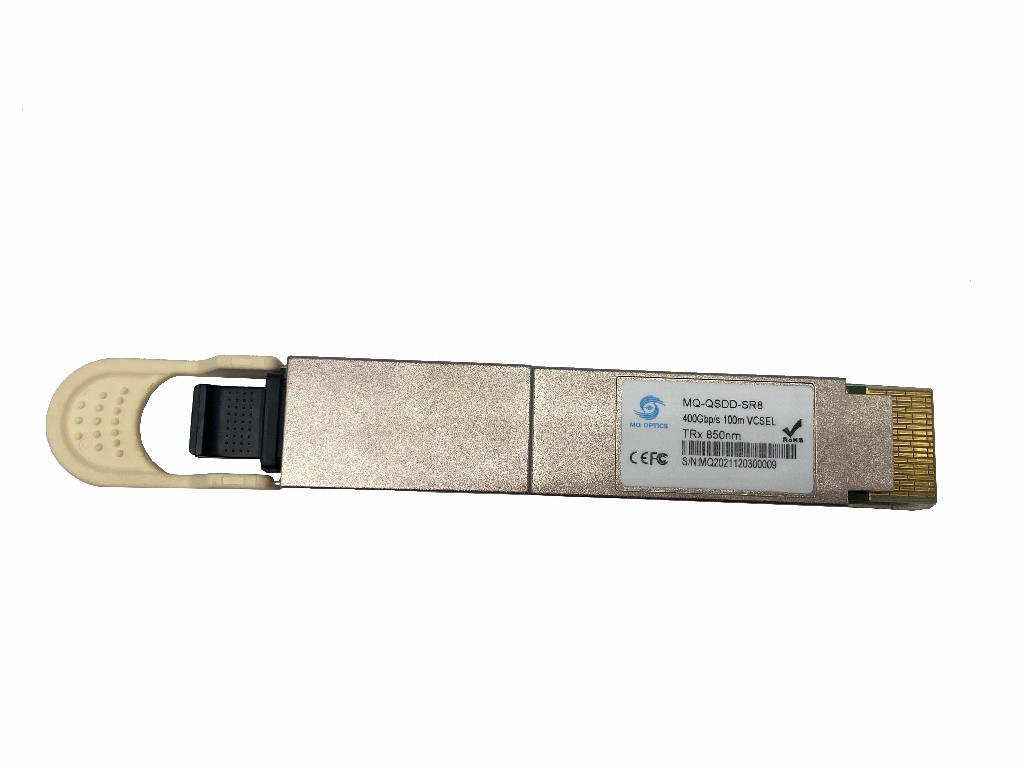

MQ-QSDD400-SR8	QSFP-DD SR8	400Gbps	100m	850nm VCSEL	PIN	<9W	10°C to 70°C
MQ-QDD400-DR4	QSFP-DD DR4	400Gbps	500m	1310nm EML	PIN	<12W	0°C to 70°C
MQ-QDD400-DR4+	QSFP-DD DR4+	400Gbps	2km	1310nm EML	PIN	<12W	0°C to 70°C
MQ-QDD400-FR4	QSFP-DD FR4	400Gbps	2km	1310nm EML	PIN	<12W	0°C to 70°C
MQ-QDD400-LR4	QSFP-DD LR4	400Gbps	10km	1310nm EML	PIN	<12W	0°C to 70°C
MQ-OSFP4-SR8	OSFP SR8	400Gbps	100m	850nm VCSEL	PIN	<12W	10°C to 60°C
MQ-OSFP4-DR4	OSFP DR4	400Gbps	500m	1310nm EML	PIN	<12W	0°C to 70°C
MQ-OSFP4-LR8	OSFP LR8	400Gbps	10km	EML CWDM4	PIN	<12W	0°C to 70°C
